WORKHOLDING DEVICE
Heavy Duty, Extra & Double Extra Heavy Duty
Live Pipe Centers

TAKE THREE, FOUR, OR FIVE ANGULAR CONTACT AND DOUBLE ROW BALL BEARINGS, QUALITY ALLOY HEAT TREATED STEELS, PRECISION MANUFACTURING PROCEDURES WITH ENGINEERED DESIGNS AND YOU HAVE THE ULTIMATE PIPE CENTERS - ROOFE HEAVY DUTY, EXTRA, AND DOUBLE EXTRA HEAVY DUTY PIPE CENTERS WITH OFF-THE-SHELF LOAD CAPACITIES TO 90,000 POUNDS - YET WITH PRECISION TO 0.000050" TOTAL INDICATED RUNOUT!

The ultimate pipe centers-roofe heavy duty, extra and double extra heavy duty pipe centers with off-the-shelf load capacities.

NOMINAL SIZE	MORSE TAPER	LOAD CAPACITY (LBS)	MEASUREMENTS (INCHES)

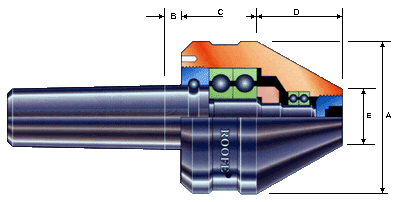

NOMINAL SIZE	MORSE TAPER	LOAD CAPACITY (LBS)	A	B	C	D	E
HD-BNP-2	2M	2,000	2 1/2	1/4	1 3/16	1 11/16	9/16
XHD-BNP-3	3M	4,000	3 1/2	1/4	1 1/4	2 5/16	27/32
HD-BNP-4	4M	6,000	4	3/8	1 1/8	2 5/8	15/16
XHD-BNP-4	4M	12,000	4 1/2	5/8	1 1/4	3	1
HD-BNP-5	5M	16,000	5 1/2	5/8	1 1/8	3 5/8	1 1/4
XHD-BNP-5	5M	20,000	6 1/2	1/2	1 1/8	4 3/8	1 7/16
HD-BNP-6	6M	20,000	6 1/2	1/2	1 1/8	4 3/8	1 7/16
XHD-BNP-6	6M	30,000	7 1/2	1/2	1 1/4	4 3/4	2
XXHD-BNP-6	6M	45,000	10	1/2	1 1/4	5 1/4	4
XHD-BNP-7	7M	30,000	7 1/2	1/2	1 1/4	4 3/4	2
XXHD-BNP-7	7M	45,000	10	1/2	1 1/4	5 1/4	4
XHD-BNP-8	8M	90,000	14	3/4	3	7	6

PLEASE SPECIFY:                GRADE A, B, OR C. - EXAMPLE (HD-BNP-2A)
                                                    60 DEGREE POINT - EXAMPLE (HD-BNP-2A-FS

IF OTHER THAN MORSE TAPER REQUIRED,PLEASE INDICATE.

LOAD CAPACITY:                 (THRUST = RADIAL) BASED ON L-10 LIFE FACTOR OF
                                                   100 RPM'S FOR 3,800 HOURS.
